| Lumber |
| where it all begins... |
| |
|
 |
Download the improved board foot calculator/spreadsheet (GW_Lumber_2.0) |
| |
|

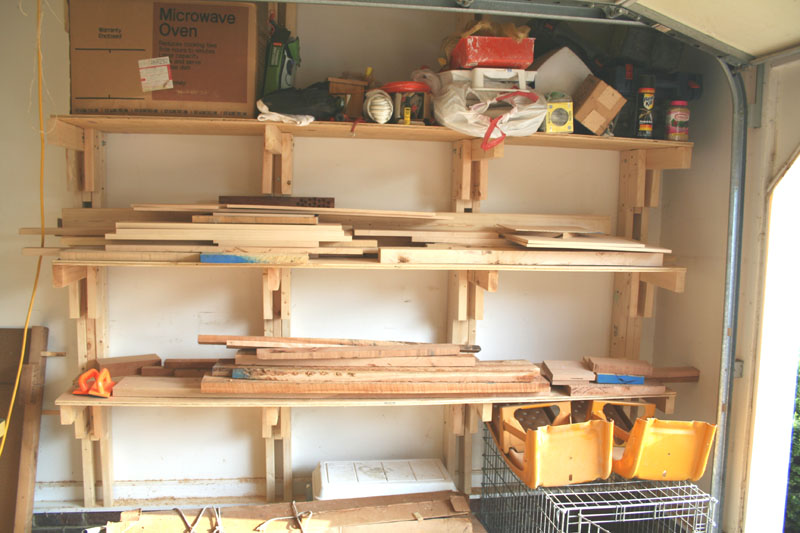

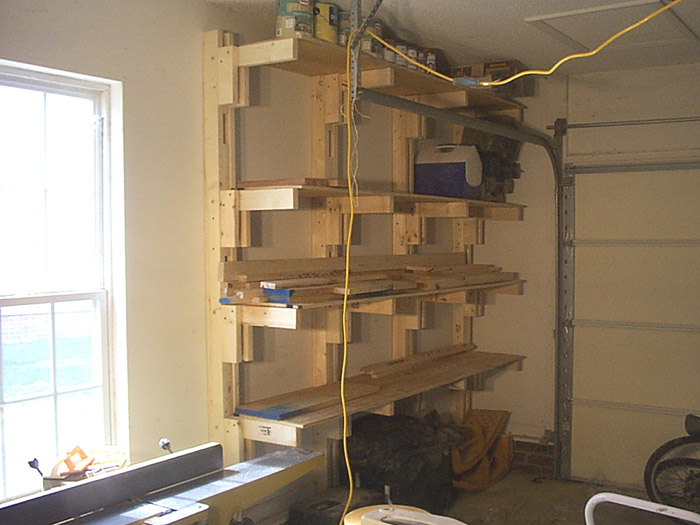

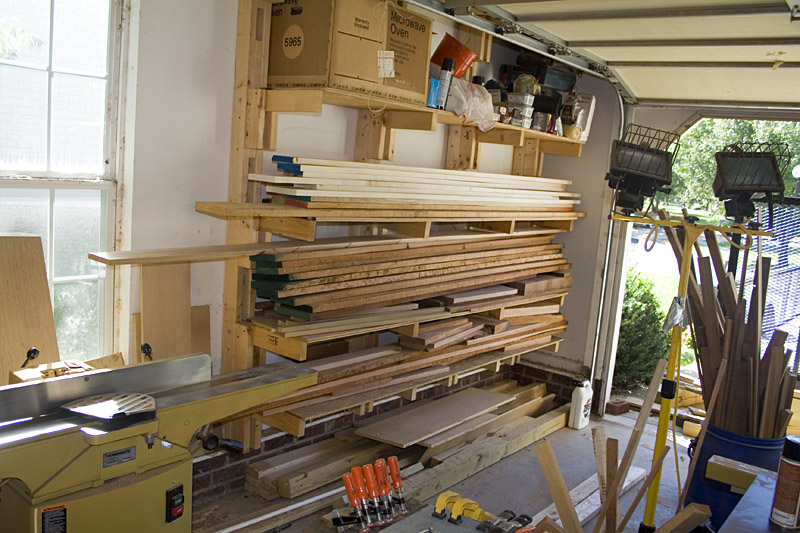

| My Lumber Storage Rack |
 |
|
 |
|
 |
|
 |

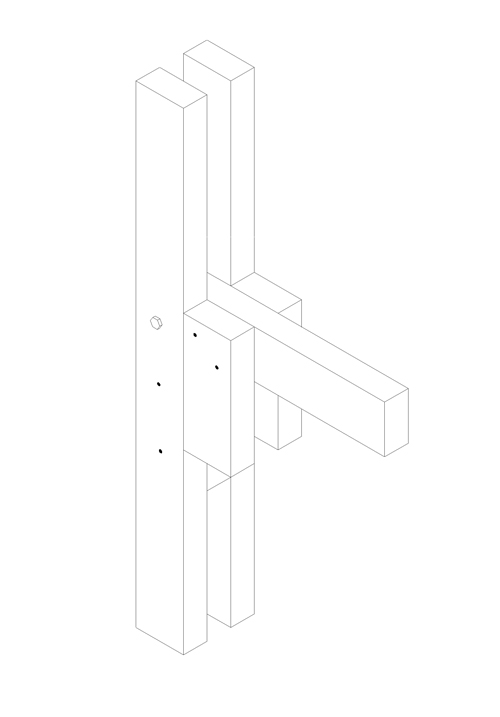

Isometric view of shelf supports. The support arms are flanked by two 2X4's (far left 2X4's in picture) that span from
floor to ceiling. A bolt extends through the two 2X4's and the shelf support arm. There are one of these supports for every other stud in the wall. |
 |

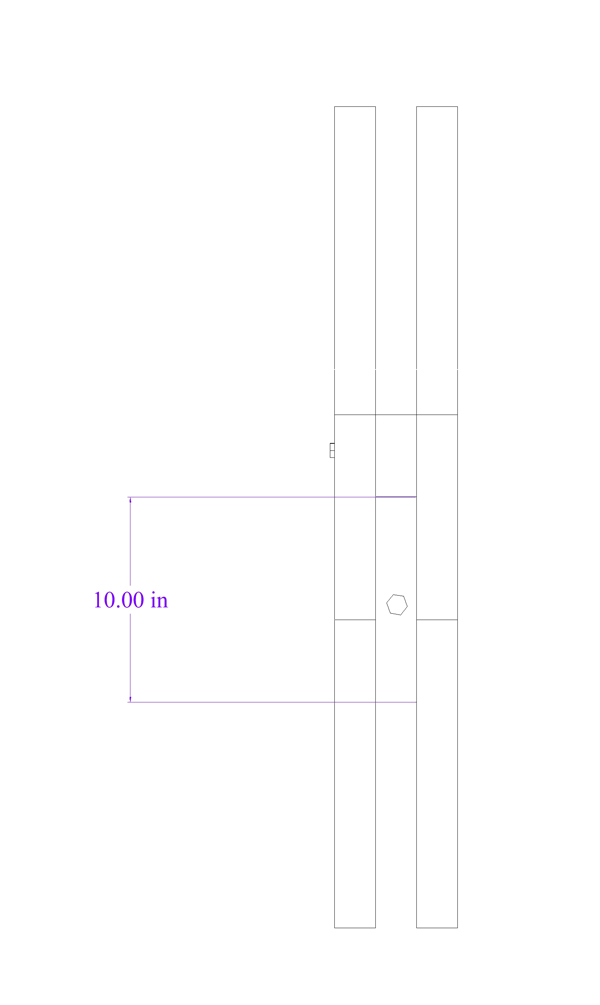

Left view of shelf support. |
 |

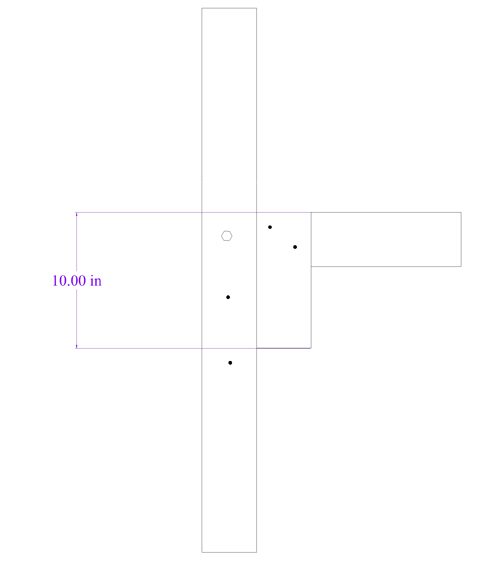

Front view of shelf support. A 6" lag screw extends through the 10" long 2X4 and into the stud in the
wall. The two side 2X4's are screwed into this 10" board from both sides. |
 |

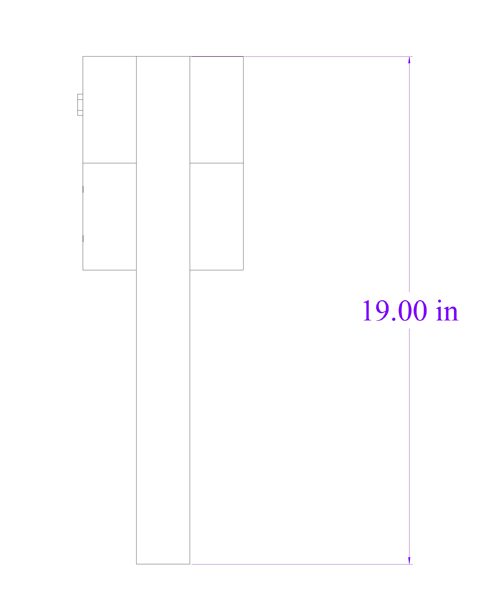

Top view of shelf support. The shelf support
arms are 19" long |
| |
|
 |

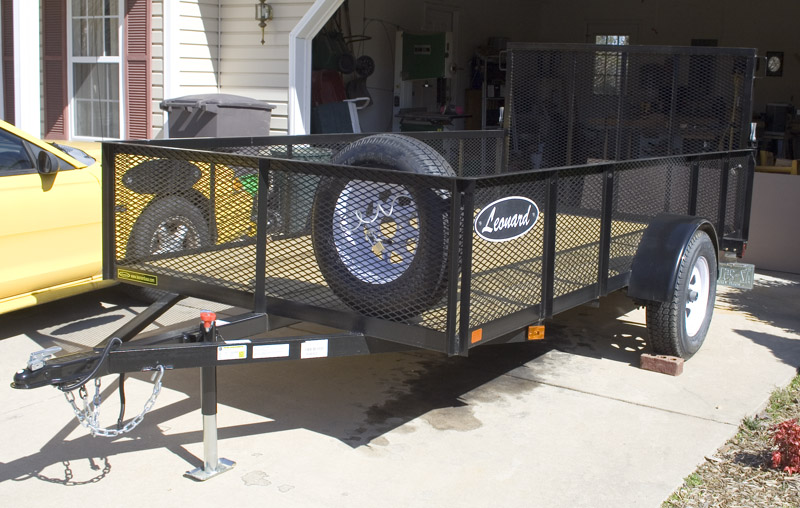

The Lumber Getter |
