How does “Polyurethane” work?

Tuesday, September 8th, 2015

(**Every attempt was made to make this easy to read by the non-chemist woodworker.  My fellow chemists please keep this in mind.)

*Images enlarge when clicked*

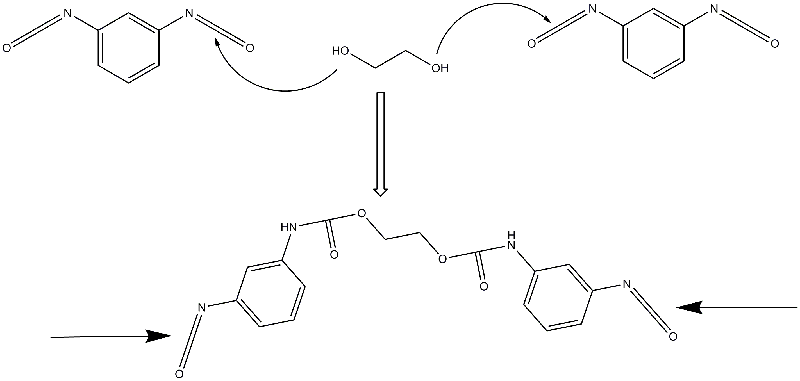

Polyurethane is a polymer (a long chain molecule with repeating units) made by combining a dual isocyanate (this is just the group R-C=N=O, a very reactive species) with a poly (more than one – this is where the POLY in polyurethane comes from) alcohol.


The straight arrows on the left and right (above) indicate where the polymer could continue on, resulting in a larger polymer.  So, a polyurethane is a long chain polymer of an isocyanate and a polyol (alcohol with more than one -OH).  As soon as the two are mixed the reaction will start.  So, as soon as they are mixed the curing process begins.  This isn’t very useful for a woodworker (some professions might use a two part polyurethane).  If the manufacturer mixed them in a can and sold them to you, by the time you opened the can it would be a solid.

Another way to make a film finish is to have everything in one part with the curing process a little slower and controllable.  This can be achieved with a uralkyd finish.  A uralkyd finish is really what you’re most likely buying at the home center when you buy “polyurethane”.  A uralkyd finish combines features of a urethane (above) and an alkyd.  What the heck is an alkyd?

An alkyd is a polyester with fatty acids sticking off of it.  The fatty acids are what give an alkyd finish the ability to polymerize (with oxygen).  The process is the same one that gives drying oils, like tung oil, their ability to cure in the presence of oxygen.

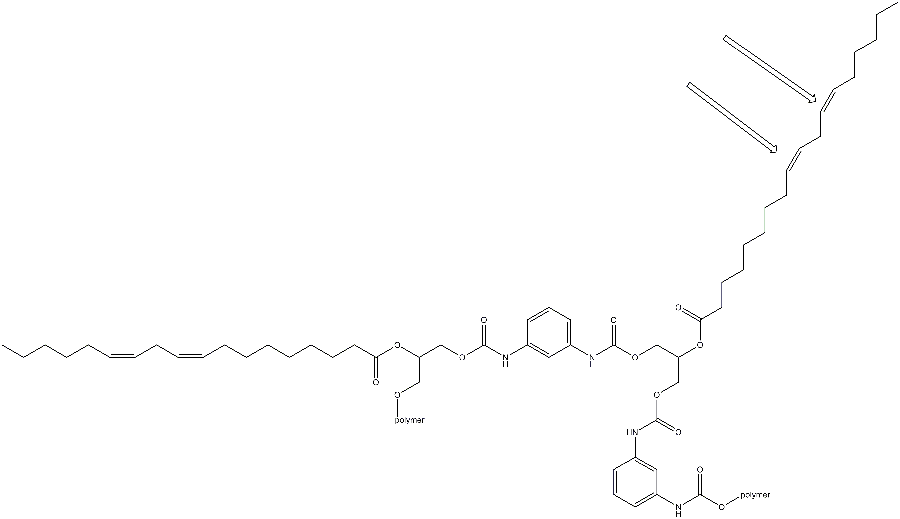

Below is a uralkyd resin that I drew.  The resin below is only an example and the version of uralkyd that you are using will be different (the differences are going to be proprietary by the company that sells it) but the principle is the same.  A uralkyd can be viewed as a fatty acid modified polyurethane.

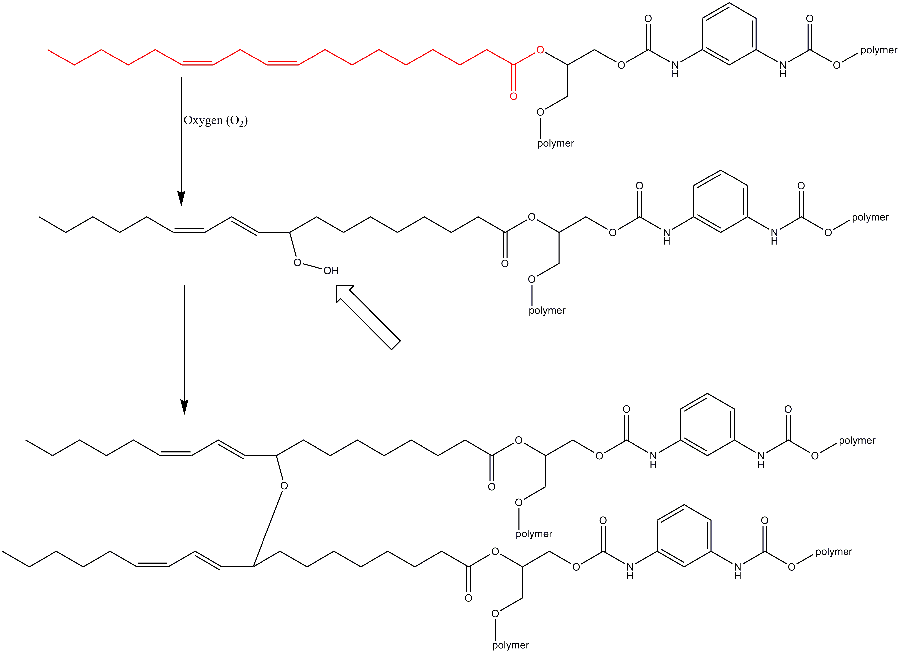

After a uralkyd finish is applied to your project and the solvent evaporates, it will begin to cure.  This happens at the double bonds  (shown with arrows above) which react with a molecule of oxygen (below).  After this, it will react with another uralkyd molecule (the R-OOH will first break down into R-O radical and OH radical, but don’t worry about this – see fat arrow below).  The process of the double bonds reacting with oxygen, and cross linking, can be accelerated with metal driers which is usually added by the manufacturer.  I might dive into the effect of metal driers in more detail in another posting (depends on how this one goes down).  The section of the uralkyd shown in red below is linoleic acid.  Linoleic acid is a component in a lot of drying oils, like tung oil.


Neat huh?   Please let me know if you have questions.


** EDIT (9/9/2015) a uralkyd is still considered a polyurethane because it has poly (many) urethane (also called carbamate)  linkages.


Super Glue is ‘Super’

Saturday, May 21st, 2011

Ethyl cyanoacrylate or ‘super glue’ is a very useful glue to have around the shop. It works by forming a polymer or ‘chain of molecules’ with another molecule of ethyl cyanoacrylate.

The Nu- in the drawing above stands for ‘Nucleophile’ and it is what starts the chain reaction; it is normally water. In super glue accelerators, the Nu can be the nitrogen atom of an amine which is a much stronger nucleophile than water.  Usually, commercial accelerators are dialkyl substituted anilines in the form R-NR’R”.  Using too much accelerator will make shorter polymers and potentially a weaker bond. Use sparingly!

Ethyl cyanoacrylate comes in handy for me most often when fixing small imperfections in wood (cracks, knots, etc.) by applying a dilute (thin) solution of ethyl cyanoacrylate in the crack and applying a small amount of sawdust. After it’s sanded you can barely see the crack when done carefully. For this I usually buy a thin solution already pre-made from ‘INSERT FAVORITE SUPPLY WOODWORKING STORE’ and use as is.


Preventing Polyurethane Skin Over

Friday, December 24th, 2010

I am getting really tired of reaching for my can of polyurethane only to discover that that the only thing inside the can is a semi-solid goopy mess.  The problem arises after the initial use of the can.   Once oxygen gets into the can the damage begins.

As a chemist, if I were dealing with a reagent in a laboratory setting, I would purge the can after each use with either nitrogen or argon.  Unfortunately, I don’t have cylinders of these inert gases laying around.  There are products on the market that do just this, but they don’t appear very cost effective to me.  An interesting approach that I read about on the net involves adding marbles to the can after each use in order to displace the air from the can.  I have also read of woodworkers using ‘dust off’ sprays which are composed of difluoroethane, which should also work to do the job and is readily available and cheap.

What method works for you?
